Prisma DI-5C

Properties DI-5

  • Reliable and safe to use

  • Smooth mounting

  • High flexibility

  • Large measuring range

  • Easy to reset

  • Backlight function

  • Turns off automatically after 45 minutes of inactivity

  • Battery indicator

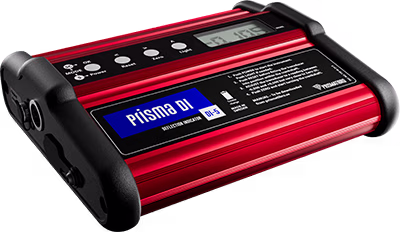

Prisma DI-5 Deflection Indicator

Detects Crankshaft Deflection
Extremly high accuracy. Used by many engineers in more than 90 countries worldwide. The device is used to measure the crankshaft deflection of engines on both vessels and power plants.
Prisma DI-5 is made in Sweden with 5 years warranty.

Good to know: Prisma DI-5C gives the opportunity to transfer the readings to Windows PC‘s via USB cable and even to Excel for further data process and evaluation.

Quotation
Documents
Contact sales

General Specifications

  • Measuring distance
    89-565 mm
  • Measuring range
    +/- 2.048 mm
  • Resolution
    0.001 mm
  • Zero balance range
    +/- 2.048 mm
  • Zero drift
    Up to 0.001 mm / 5 minuter
  • Instrument operating range
    0-55 °C
    32-130 ° F
  • Transducer operating range
    0-80 °C
    32-175° F
  • Battery
    3.6 V Lithium Ion, rechargeable
  • Battery life
    10 hours/Charge
    Shelf life 5 years
  • Extension bars
    10, 20, 40, 80 and 2 x 160 mm
  • Cable length
    7 meter

  • Instrument
    190 x 167 x 50 mm
  • Transducer
    Ø31 x 81 mm
  • Case
    300 x 280 x 140 mm
  • Weight
    3.3 kg
